Folding mask machine

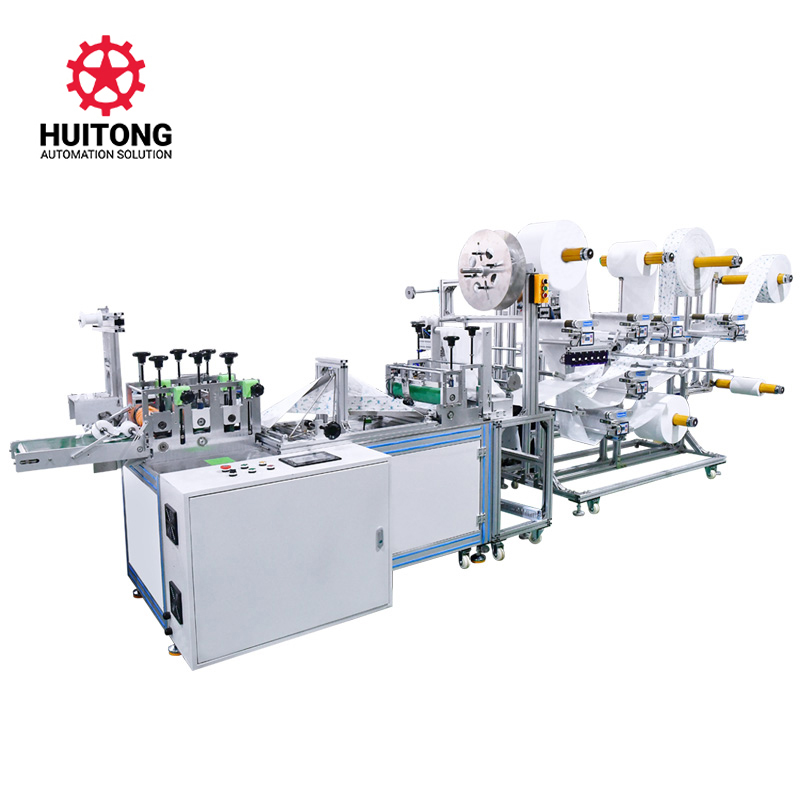

Elastic fabric folding mask machine

This elastic fabric color-tracking and positioning folding mask machine automates the entire process from raw materials to finished product. It uses an automatic feeding rack and is equipped with a correction system to ensure that the material enters the machine stably. It automatically inserts the nose bridge strip, folds and shapes the mask, and cuts it to complete the production of elastic fabric folding masks. The equipment has low energy consumption, can be customized with different cutting dies according to needs, offers diverse products, and is simple and convenient to operate.

TAGS: Folding mask machine Elastic fabric mask machine

TEL MSG

Product Introduction

This elastic fabric color-tracking and positioning folding mask machine automates the entire process from raw materials to finished product. It uses an automatic feeding rack and is equipped with a correction system to ensure that the material enters the machine stably. It automatically inserts the nose bridge strip, folds and shapes the mask, and cuts it to complete the production of elastic fabric folding masks. The equipment has low energy consumption, can be customized with different cutting dies according to needs, offers diverse products, and is simple and convenient to operate.

Product Parameters

ItemSpecification
Product NameUltrasonic 3D Elastic Mask Production Machine
Labor Requirement1 feeding operator1 collecting operator
Model No.HT-K3D5
Dimension Tolerance±1MM (excluding raw material tolerance)
Overall Dimension4437*1260*1949mm
Machine Weight600 KG
Power10KW
Installation TypeFloor-mounted
Production Capacity100–120 pcs/min
Power Supply50HZ-60HZ, 220V-230V
Machine MaterialAluminum Alloy
Raw Material Roll SpecsOuter fabric width:195mm, Melt-blown fabric width:175mm, Inner fabric width:195mm, Elastic ear loop width:120mm
Applicable IndustriesSanitary products, medical supplies, protective equipment manufacturing
Packing DimensionsMaterial rack: L2100 × W1100 × H1700mmMain machine: L2750 × W1700 × H1450mmWeb guide tension rack: L1100 × W1050 × H1800mmTotal Packing Weight: 350KG

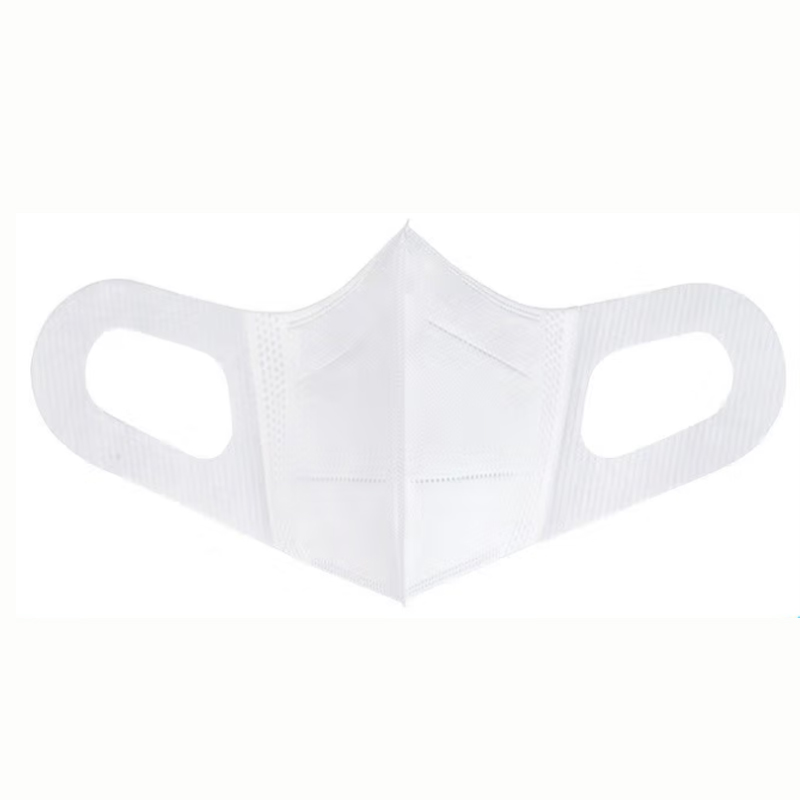

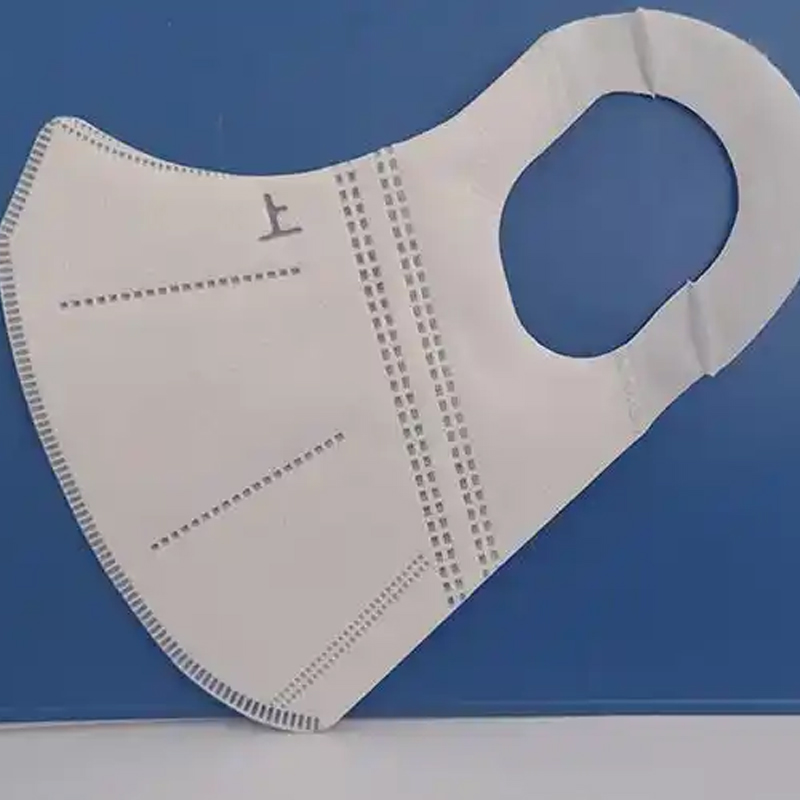

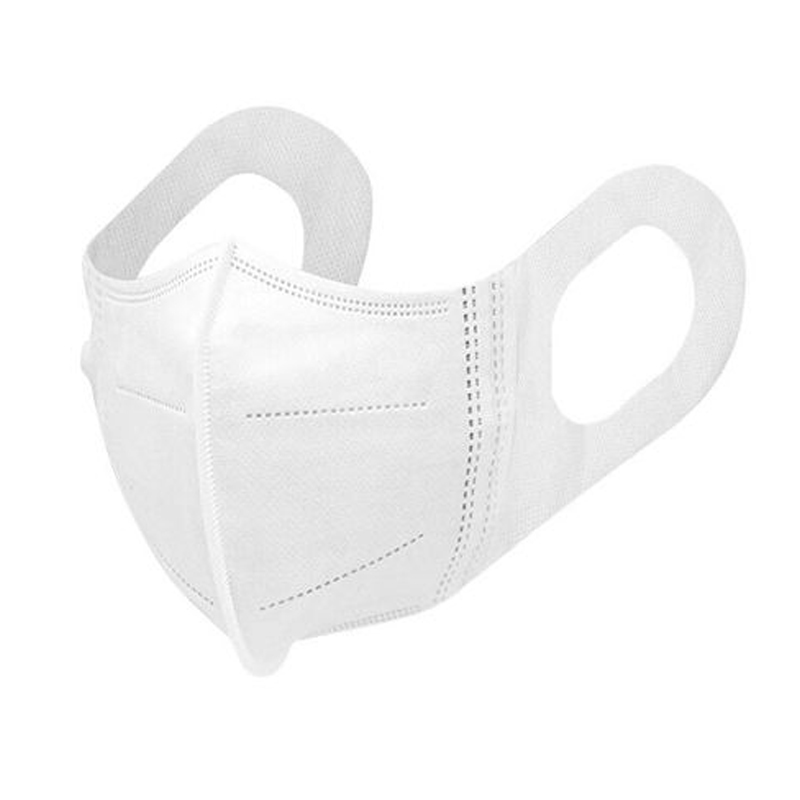

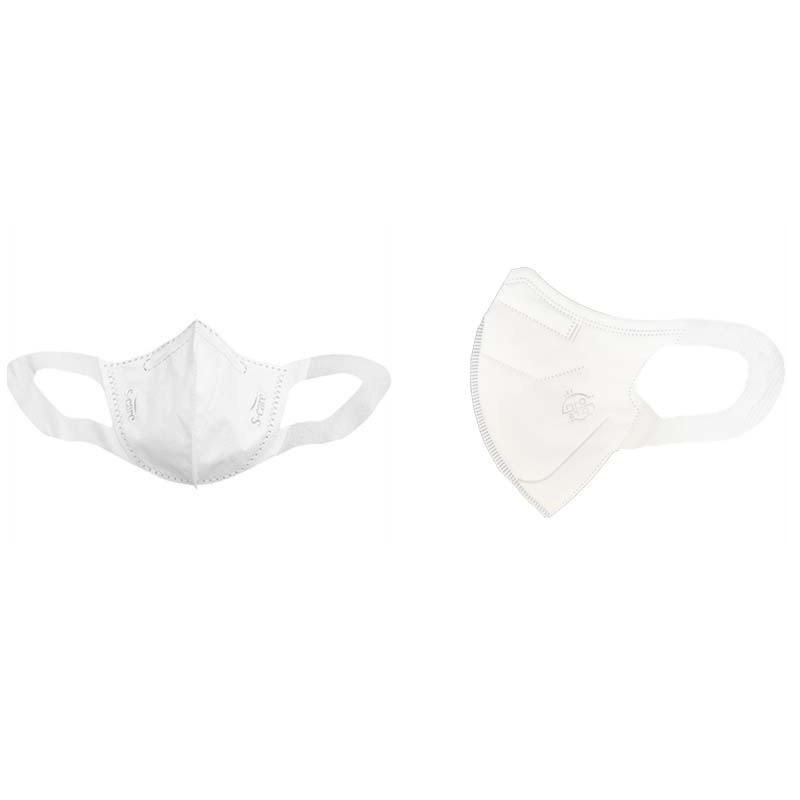

Sample photos

  • Elastic fabric folding mask machine
  • Elastic fabric folding mask machine
  • Elastic fabric folding mask machine
  • Elastic fabric folding mask machine

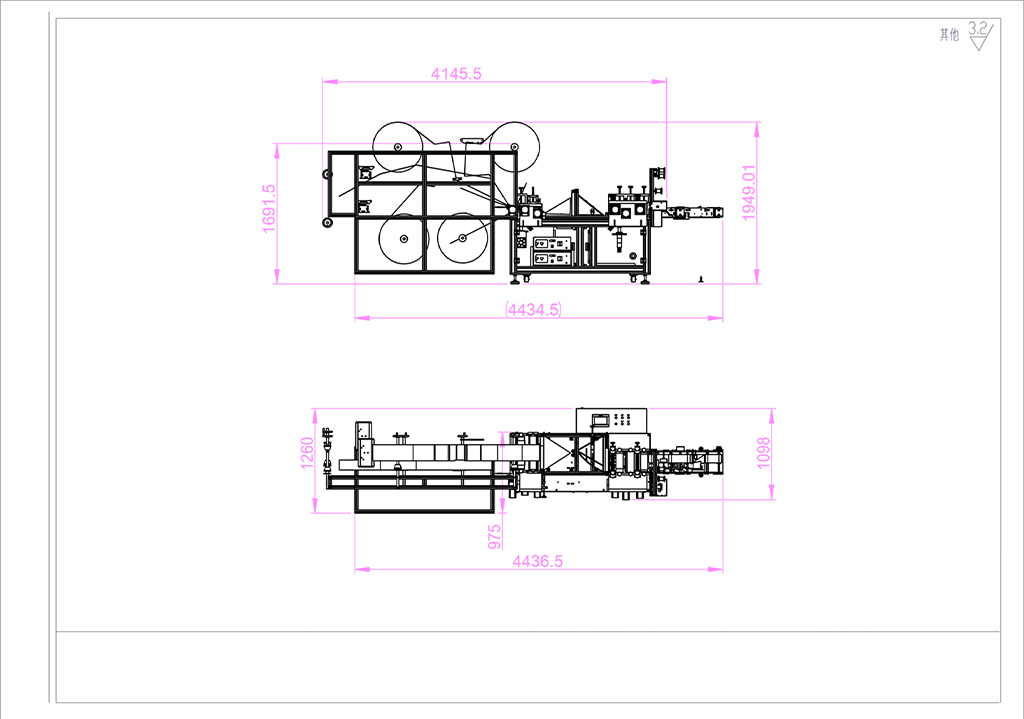

Product Drawings

Elastic fabric folding mask machine
Huitong Automatic Machinery

Company Profile

Huitong Automatic Machinery

Huitong Automation has been rooted in Dongguan for 18 years and has always been one of the leading suppliers of ultrasonic automation technology in China. We have unique technology in the field of composite welding and embossing of non-woven and textile fabrics, and have also demonstrated outstanding performance in various material fusion, edge sealing technology, and whole line packaging solutions. The company has 5 national direct sales locations and its products are exported to 48 countries and regions overseas. Adhering to the concept of "lean production", we continuously iterate and update our product system. With user needs as the core and market orientation, We have provided over 10000 quality stable automation equipment and thoughtful "360 after-sales worry free" service to global customers.
