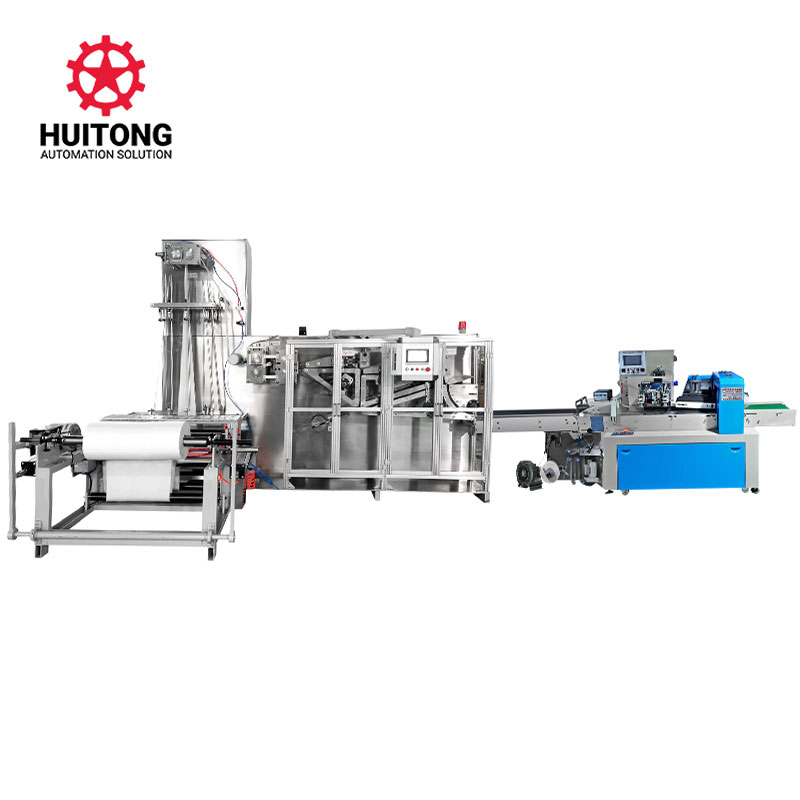

Disposable bath towel folding and packaging machine HT-BT2000

1. Equipment Working Principle: Manual unwinding, longitudinal folding, fixed-length positioning, cutting, transverse folding, and finished product conveying.2. The equipment operates continuously without stopping, ensuring product folding accuracy and reducing raw material loss.3. The equipment is equipped with a synchronous conveyor and magnetic powder tension controller to ensure stable tension during finished product conveying.4. The equipment features our innovative multi-functional irregular-shaped folder, allowing for more product folding methods and easy adjustment.5. The equipment use···

TEL MSG

Product Introduction

1. Equipment Working Principle: Manual unwinding, longitudinal folding, fixed-length positioning, cutting, transverse folding, and finished product conveying.2. The equipment operates continuously without stopping, ensuring product folding accuracy and reducing raw material loss.3. The equipment is equipped with a synchronous conveyor and magnetic powder tension controller to ensure stable tension during finished product conveying.4. The equipment features our innovative multi-functional irregular-shaped folder, allowing for more product folding methods and easy adjustment.5. The equipment uses a servo-controlled slider-type transverse fork cutter, capable of up to three transverse folds.6. The equipment uses servo-controlled imported cutting tools for precise cutting.7. The equipment uses

Product Parameters

ParameterValue
Speed40-80pcs/min
Output Power8Kw
Power SupplyAC220V 50/60Hz
Air Pressure0.6-0.8 mpa
Weight2000KG
Dimensions

7100*2750*2560mm

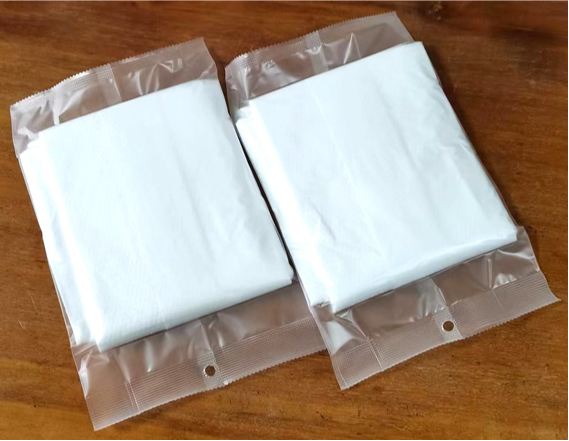

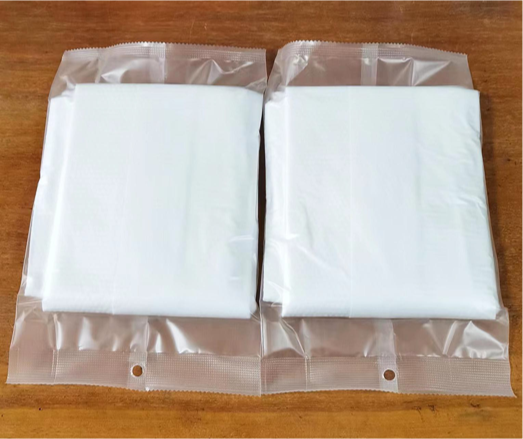

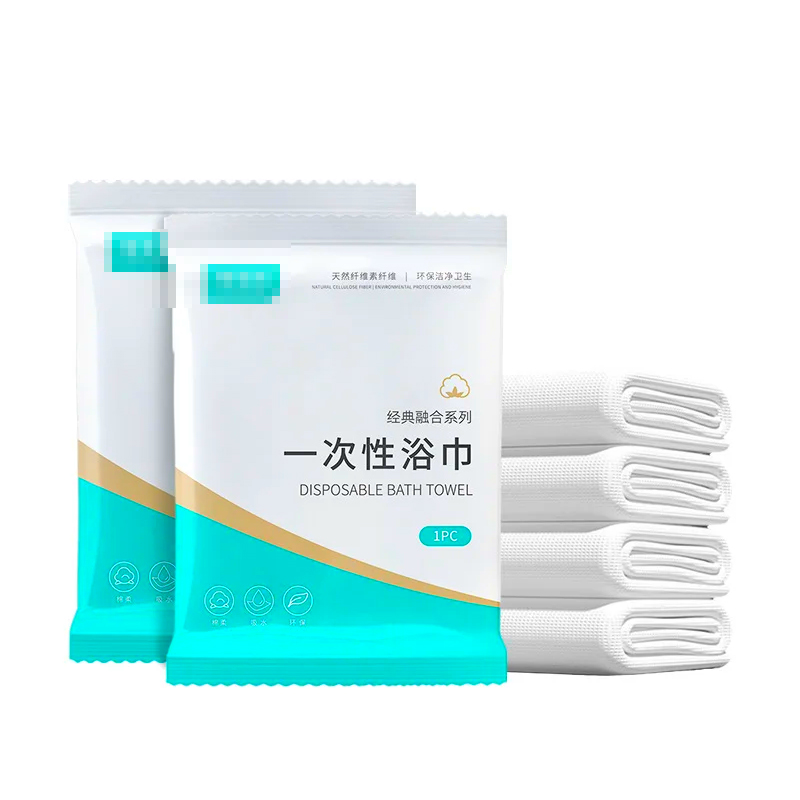

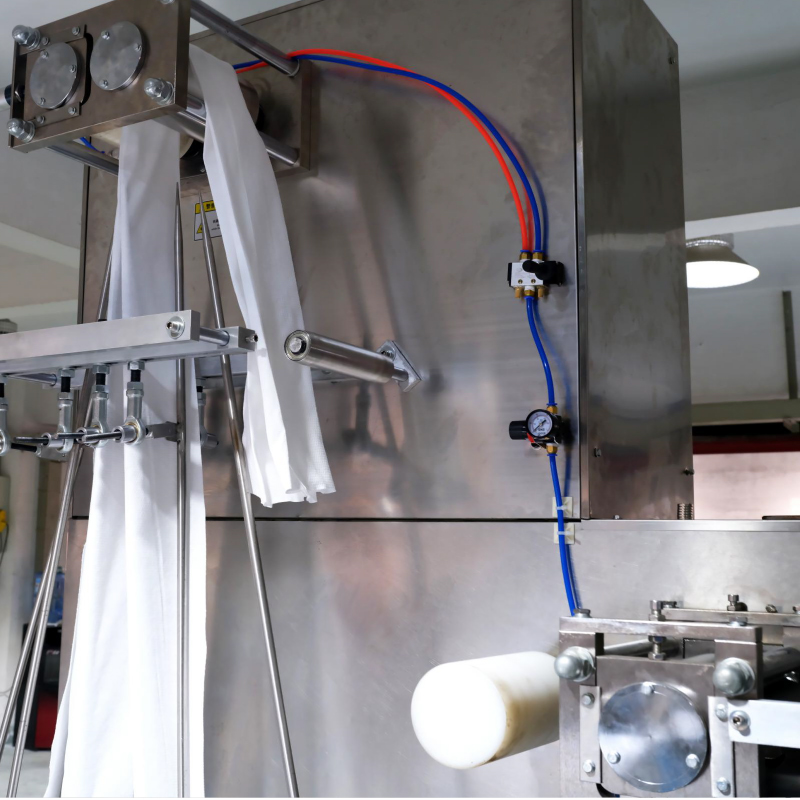

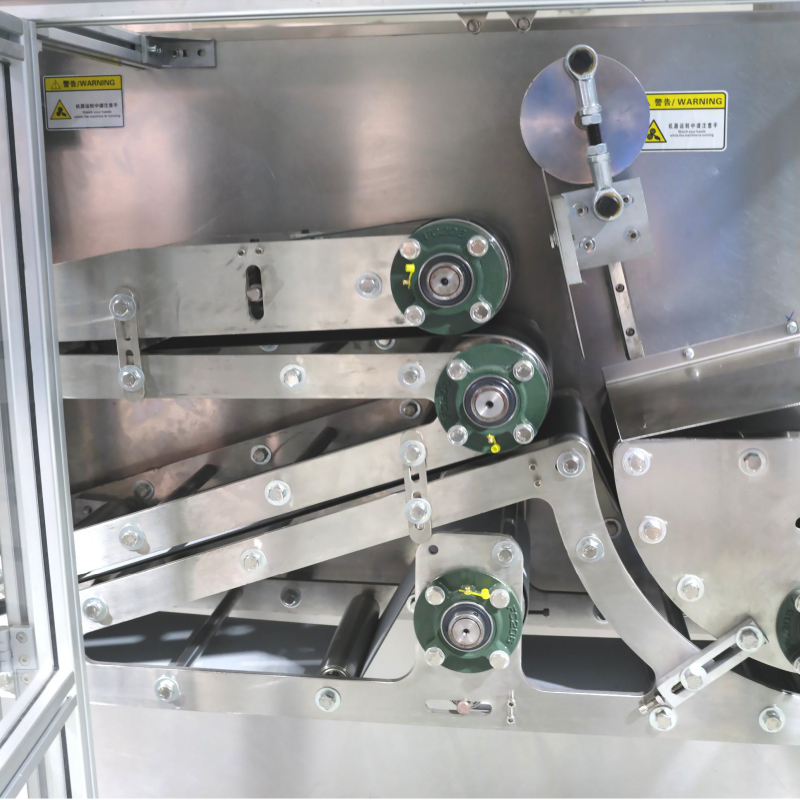

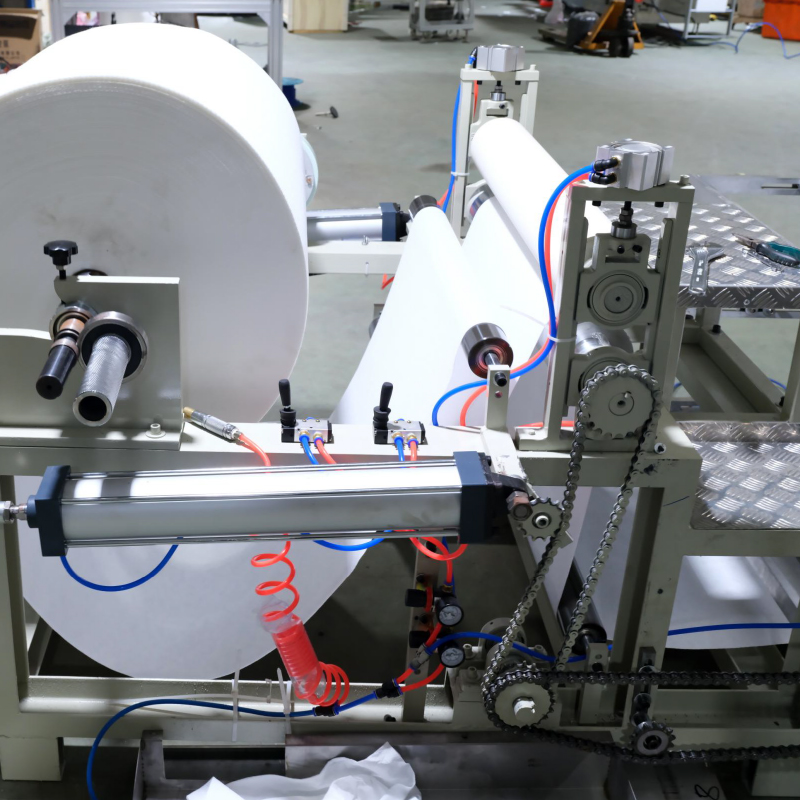

Sample photos

  • Disposable bath towel folding and packaging machine HT-BT2000
  • Disposable bath towel folding and packaging machine HT-BT2000
  • Disposable bath towel folding and packaging machine HT-BT2000

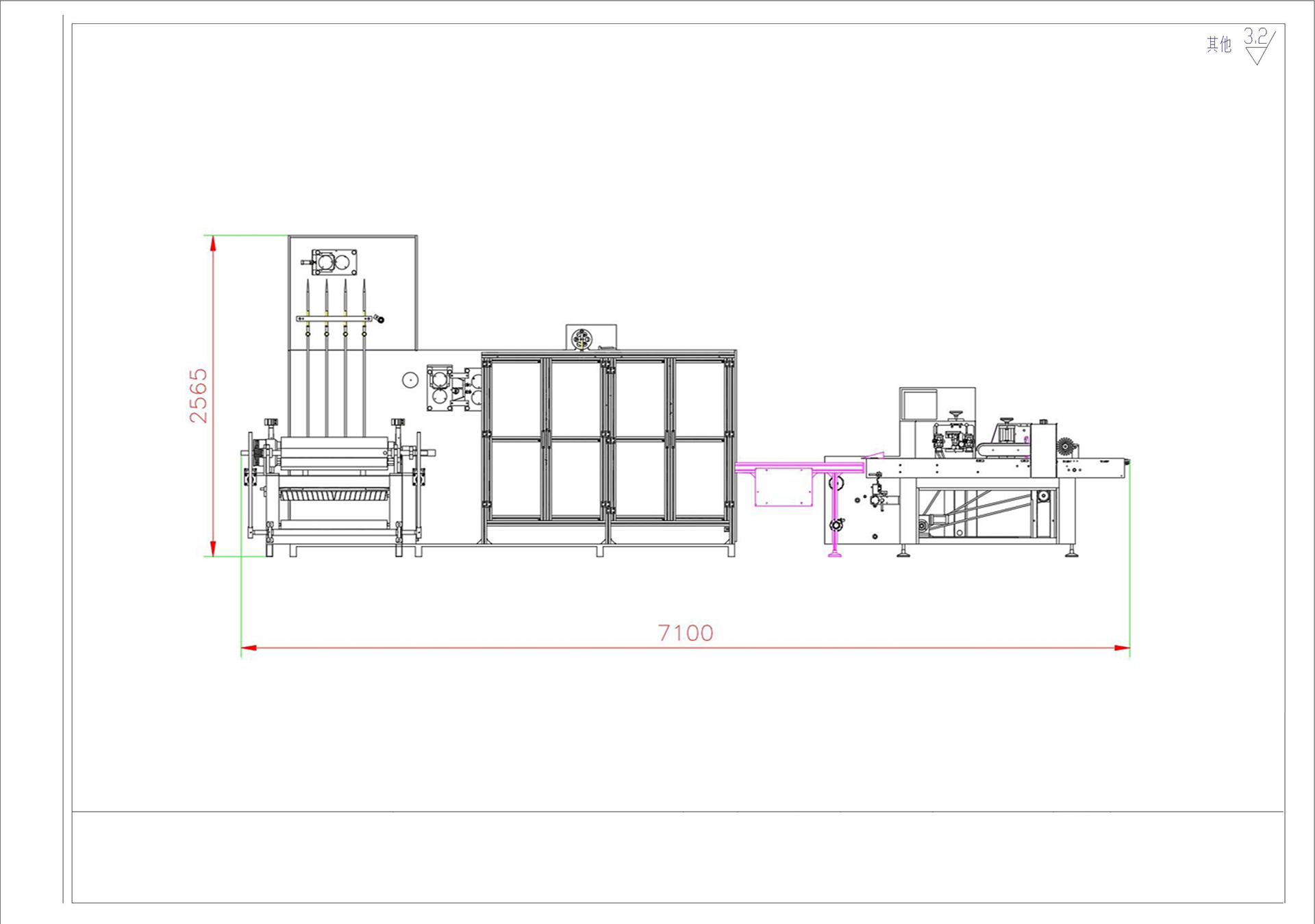

Product Drawings

Disposable bath towel folding and packaging machine HT-BT2000
