Product Introduction

Product Quote

Unit Price/Set	US$
1.Price Term	EXW Dongguan
2.Payment Term	T/T 50 % deposit, and T/T 50% balance before shipment.
3.Lead Time	30-60 working days after deposit and the testing material is received.
4.Warranty	1 year for machine(except easy broken parts)
5.Packing	Export wooden packing.
6.Price Validity	30 days.
7.After Sales Service	1)Engineer can go for installation and training（Labor fee: US $200 per day）, with VISA, tickets or any traffic cost, hotels and meals will be on buyer's account.
	2)Machine problem solving: A. Teaching Video; B. Online video call by WeChat/WhatsApp;

Product Parameters

Parameter	Value
Speed	60-80 PCS/MIN
Output Power	18KW
Power Supply	AC220V 50/60Hz
Air Pressure	0.6-0.8MPa
Weight	3000 KG
Dimensions	940013002200MM

Applicable Incoming Material Specifications

Item	Gram Weight	Width (mm)	Outer Diameter of Roll Material (mm)	Inner Diameter of Material Tube (mm)	Weight
Non-woven Fabric (Laminated Surface Layer)	50	260	Φ600	Φ76.2	Max 15kg
Non-woven Fabric	25	260	Φ600	Φ76.2	Max 15kg
Melt-blown Fabric	30	260	Φ600	Φ76.2	Max 15kg
Hot Air Cotton	60	260	Φ600	Φ76.2	Max 15kg
Nose Bridge Strip	——	Approx. 5	Φ450	Φ150-Φ330	Max 15kg
Ear Loop	——	5-7mm Flat Ear Loop	Coiled/Packaged Material

Configuration List (For reference only)

Main Configuration
Serial Number	Component Name	Quantity	Remarks
1	5-layer material rack	1 set	Optional 4-layer/5-layer
2	Nose bridge feeding mechanism	1 set

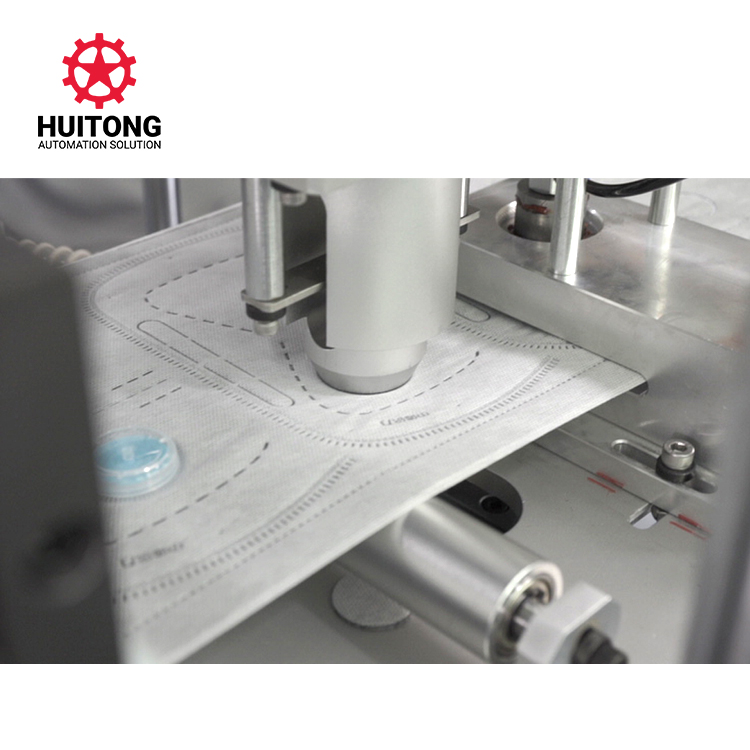

3	Mask pattern welding mechanism	1 set

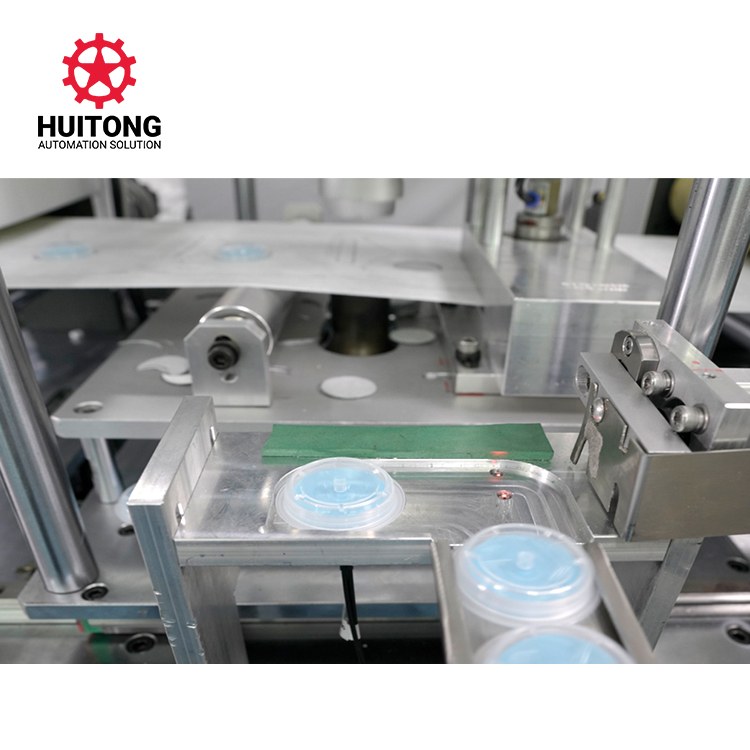

4	Punching mechanism	1 set	Optional for customers
5	Ear loop welding mechanism	1 set
6	Sponge pasting mechanism	1 set	Optional for customers
7	Folding and forming mechanism	1 set
8	Ear loop suction group	1 set
9	Edge sealing mechanism	1 set
10	Cutter forming mechanism	1 set
11	Finished product output mechanism	1 set
12	Transmission mechanism	1 set
13	Operating system	1 set
14	Operation panel	1 set

Main Electrical Components
Serial Number	Component Name	Brand	Remarks
1	Cylinder	Airtac
2	Solenoid valve	Airtac
3	Servo motor	Inovance
4	PLC	Inovance
5	Bearing	Bosch
6	Linear guide	HIWIN
7	Touch screen	Inovance
8	Circuit breaker	Chint
9	Button

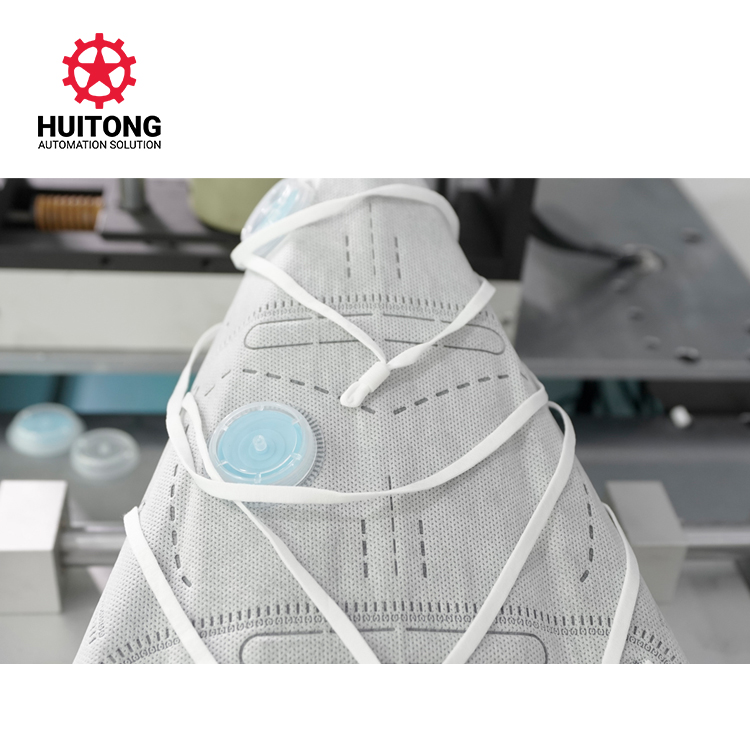

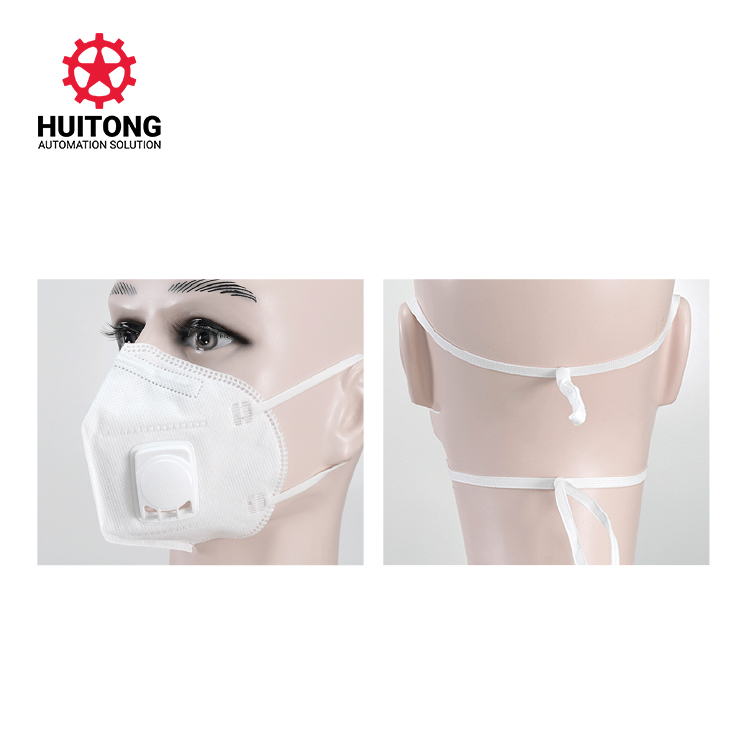

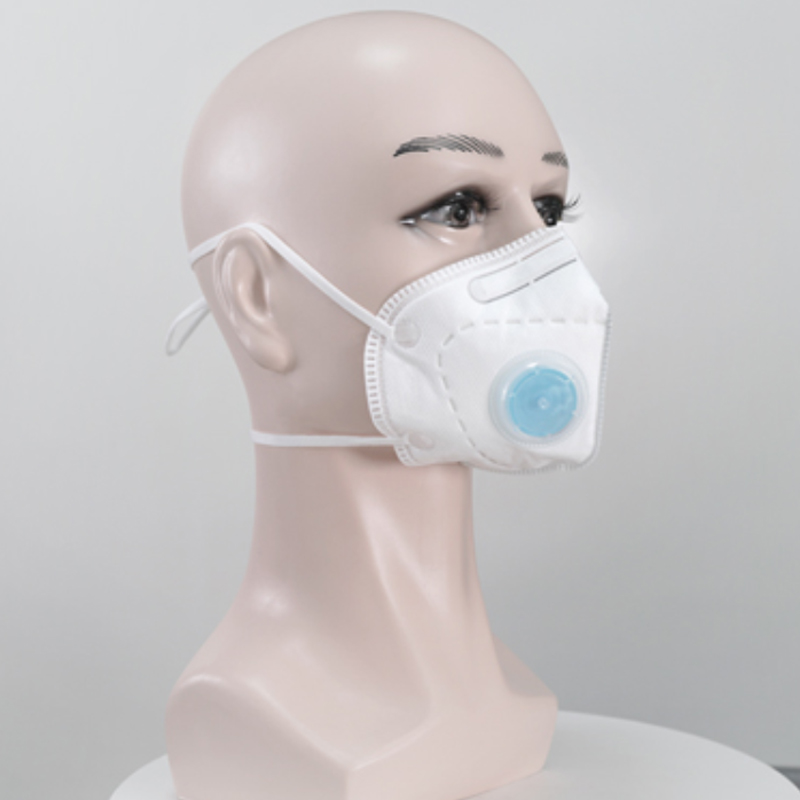

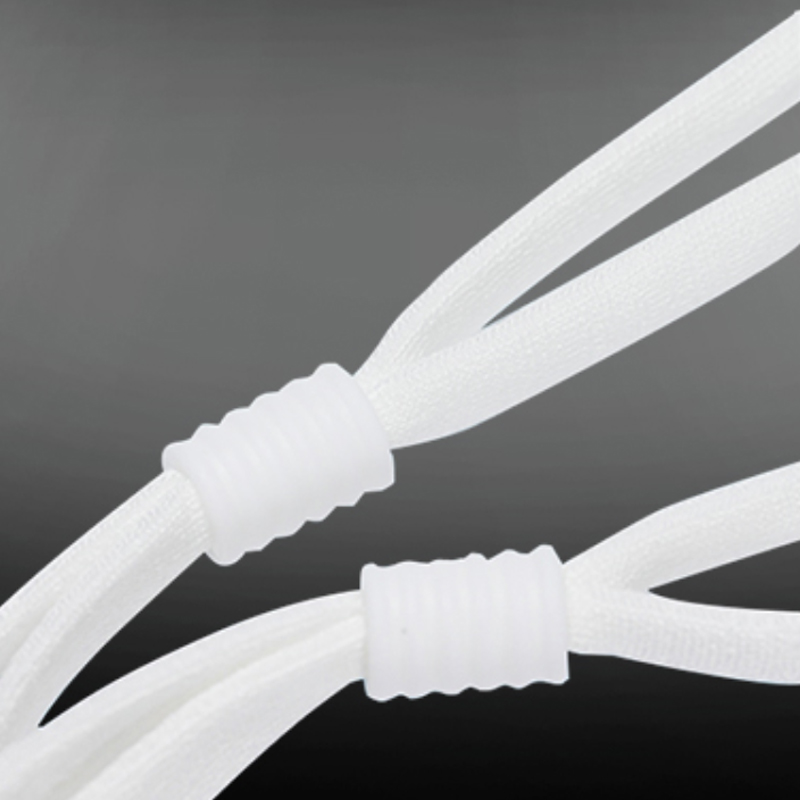

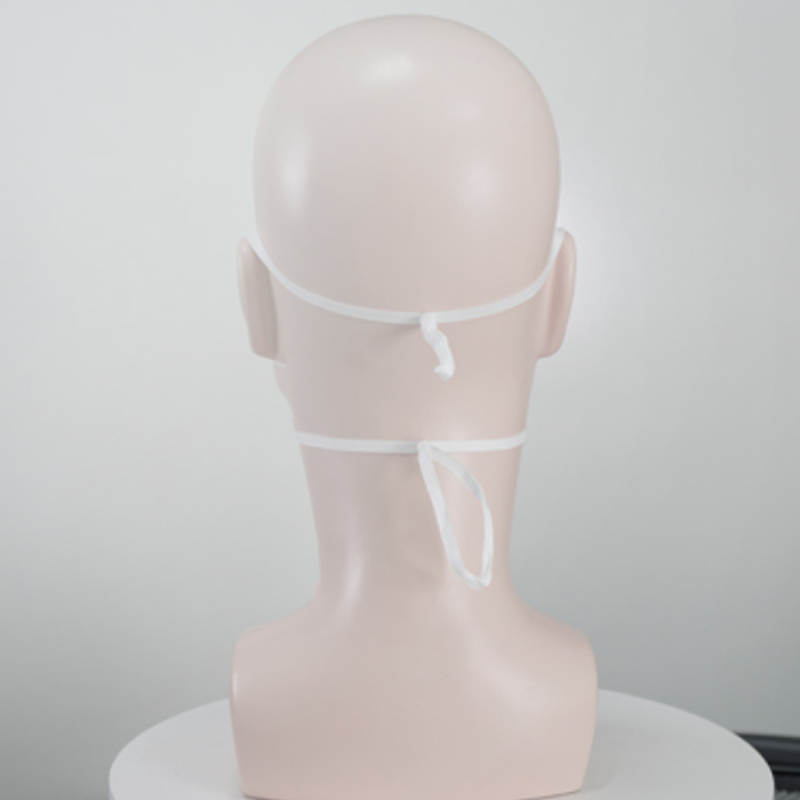

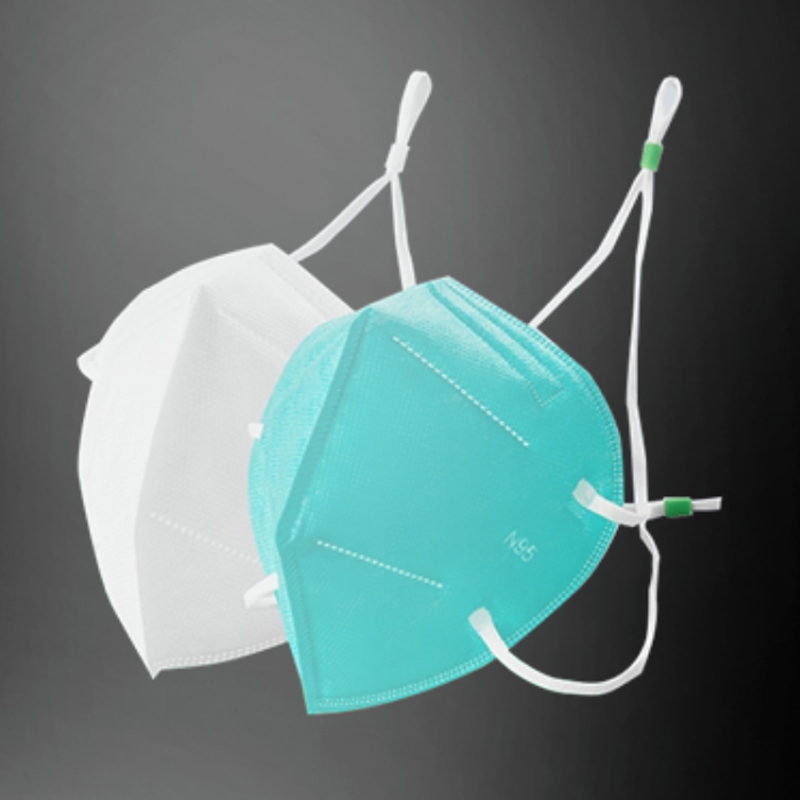

Sample photos

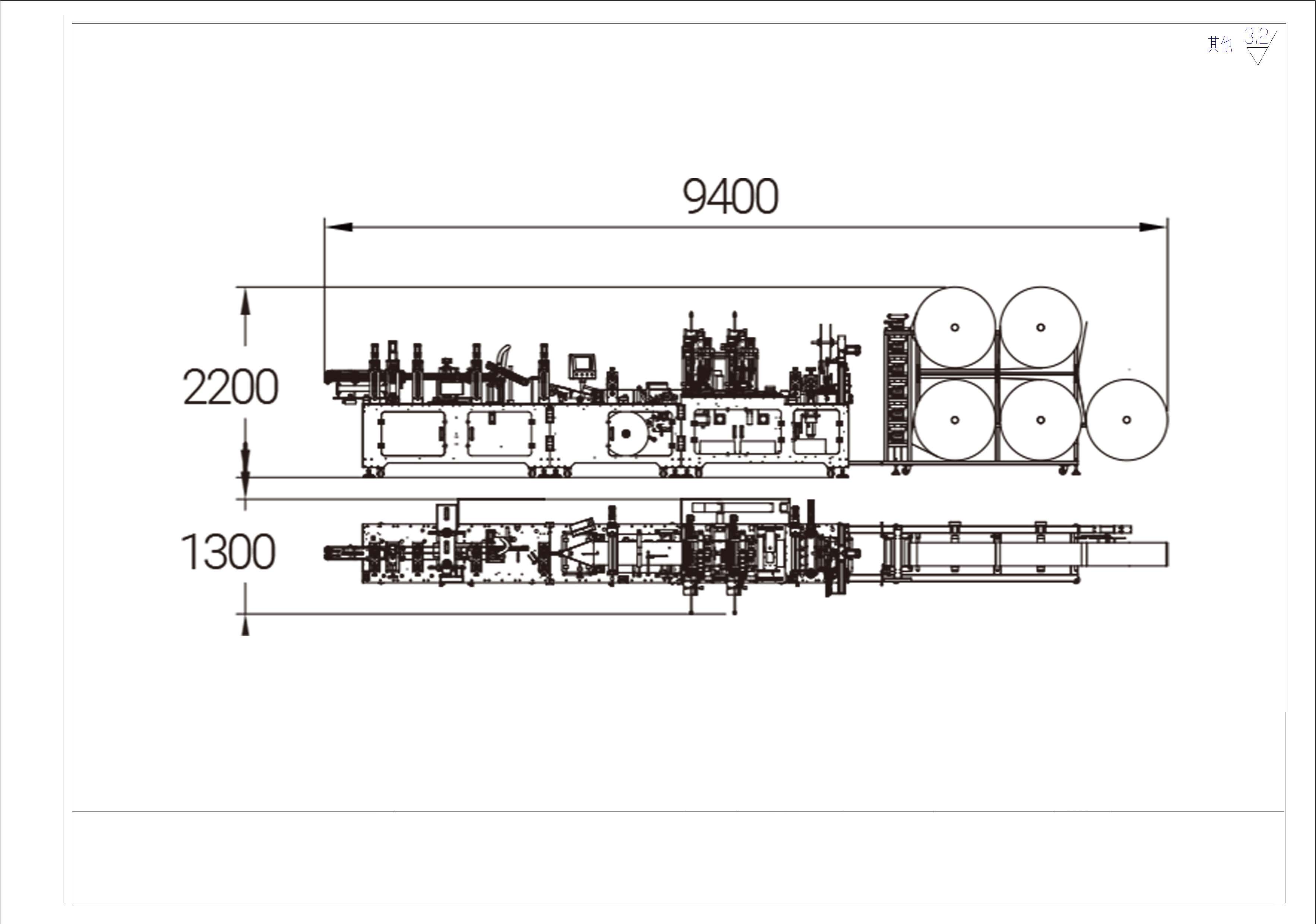

Product Drawings

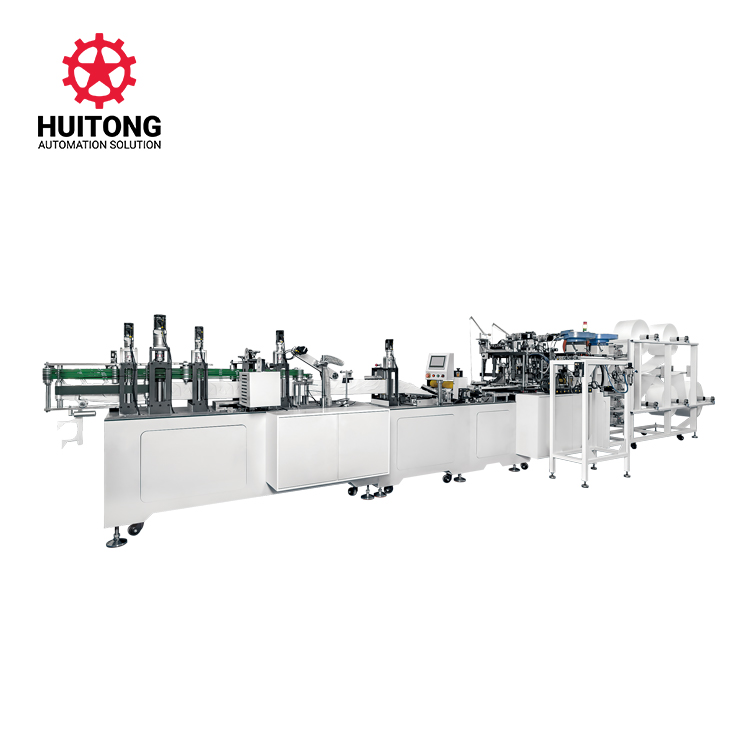

Headband buckle fold mask machine HT-KZ08F
