Napkin Machine

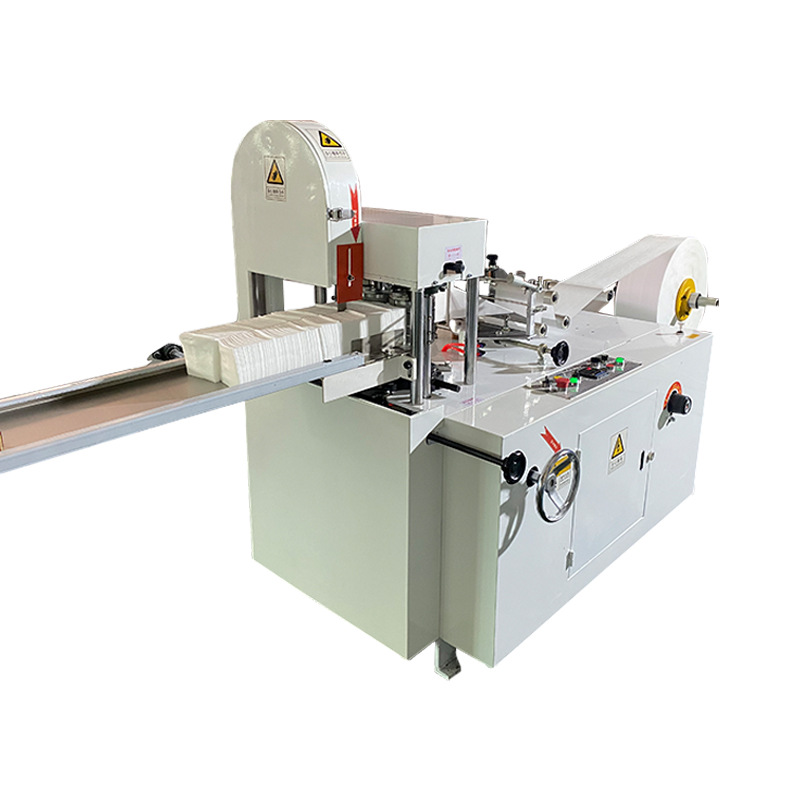

Napkin folding machine

This machine features a 304 stainless steel structure. The fabric is folded in half by a folding mechanism, then passed through a rotating folding wheel for repeated folding, before being cut. A high-low counting mechanism automatically tracks the number of pieces produced, and the finished product is automatically dispensed. It is suitable for producing products such as dry wipes, paper towels, and dental pads.

TEL MSG

Product Introduction

This machine features a 304 stainless steel structure. The fabric is folded in half by a folding mechanism, then passed through a rotating folding wheel for repeated folding, before being cut. A high-low counting mechanism automatically tracks the number of pieces produced, and the finished product is automatically dispensed. It is suitable for producing products such as dry wipes, paper towels, and dental pads.

Product Parameters

No.Parameter ItemParameter Description
1Applicable Base Paper13-23g Wood Pulp Paper, Straw Pulp Paper
2Base Paper WidthStandard Equipment Model ±15mm
3Maximum Outer Diameter of Base Paperφ1100mm
4Finished Product Unfolding SpecificationEquipment Model ±2mm × Raw Material Size, other specifications need to be specified by the customer
5Operating Speed0-500pcs/min
6Maximum Speed600pcs/min
7Folding Method1/4
8Unfolding and Folding DimensionsUnfolding size 330*330mm; 1/4 folding size 165*165mm
9PrintingTwo Colors
10Frame Color - Sheet Metal ColorWhite-Blue
11Embossing DeviceSteel vs Wool
12CountingPneumatic Upper and Lower Dislocation
13Speed ControlInverter Speed Regulation
14Total Power2.25kw
15Voltage380v 50Hz
16Paper Unwinding Rear StandBelt Speed Regulation
17Air CompressorPrepared by the Customer
18FrameIntegral Frame with Wall Panels
19Paper Loading MethodPneumatic Paper Loading
20Overall DimensionsLength 5000 × Width 1200 × Height 1650mm
21Weight1200kg
22Embossing Heating Rod (None by Default, Optional)None
23Printing Roller MaterialCeramic Printing

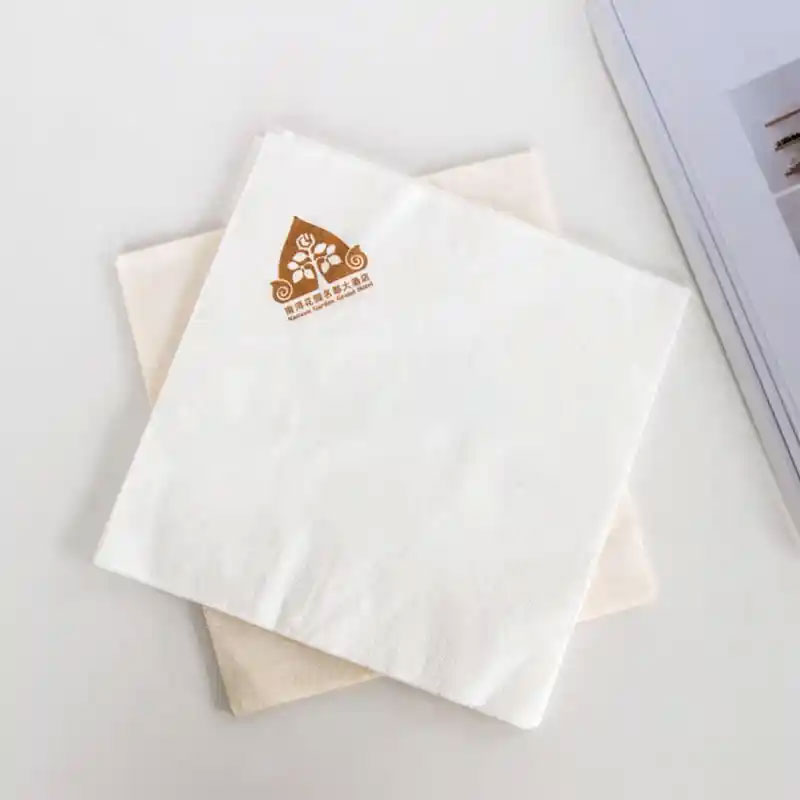

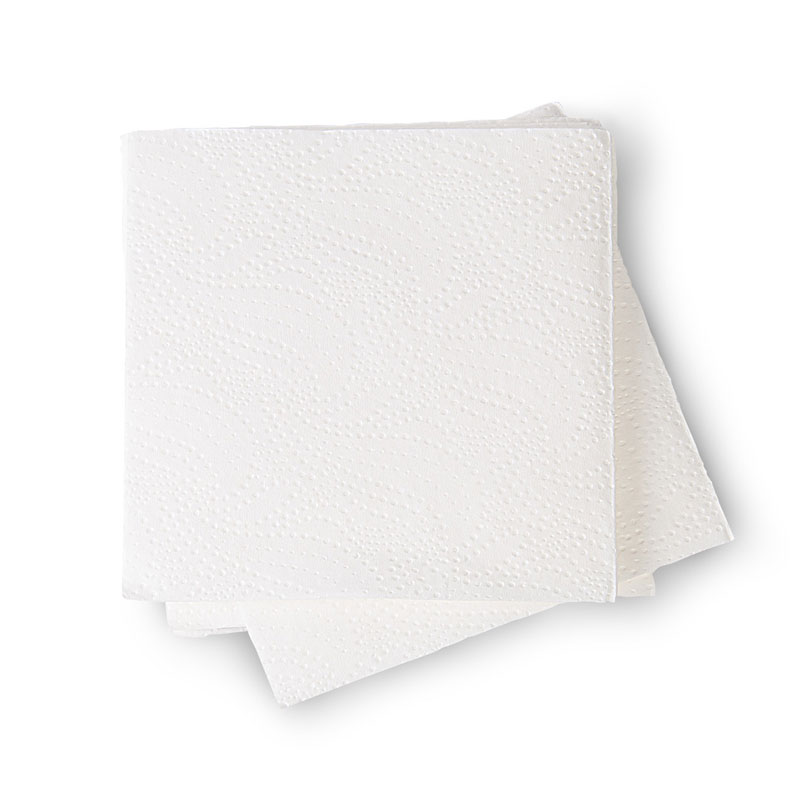

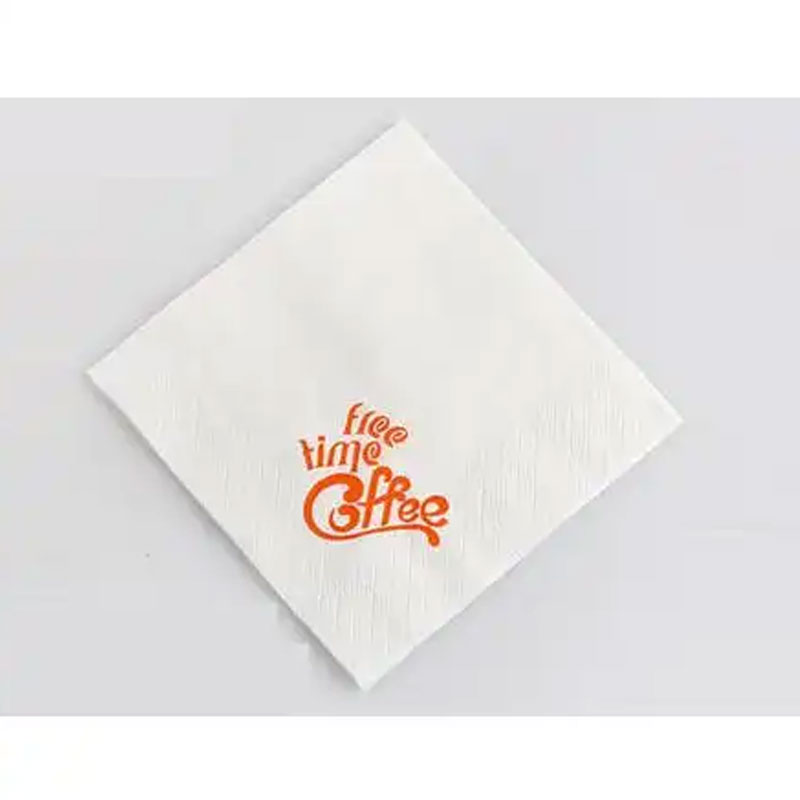

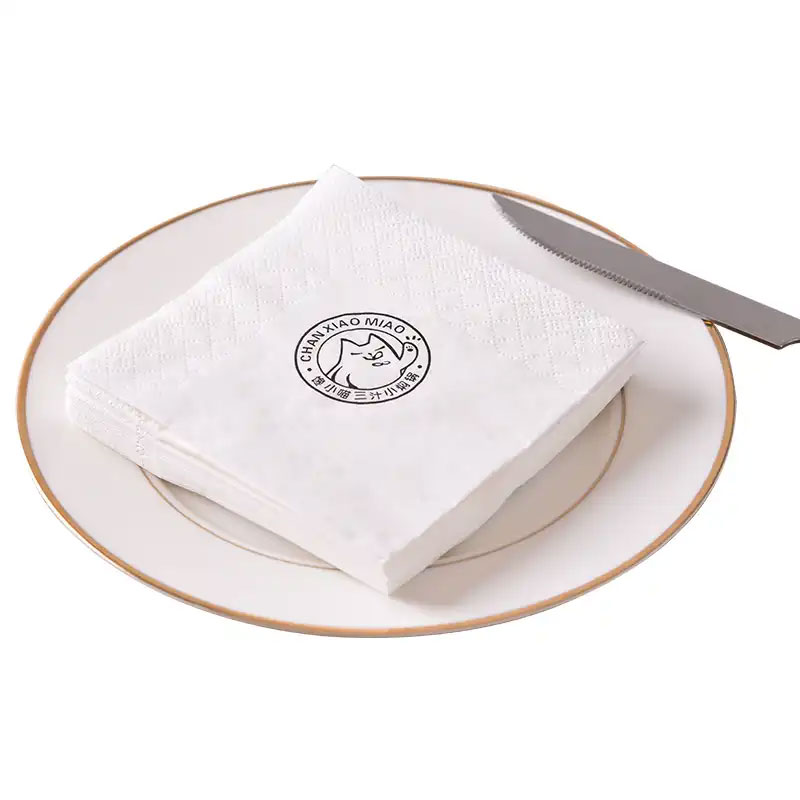

Sample photos

  • Napkin folding machine
  • Napkin folding machine
  • Napkin folding machine
  • Napkin folding machine
