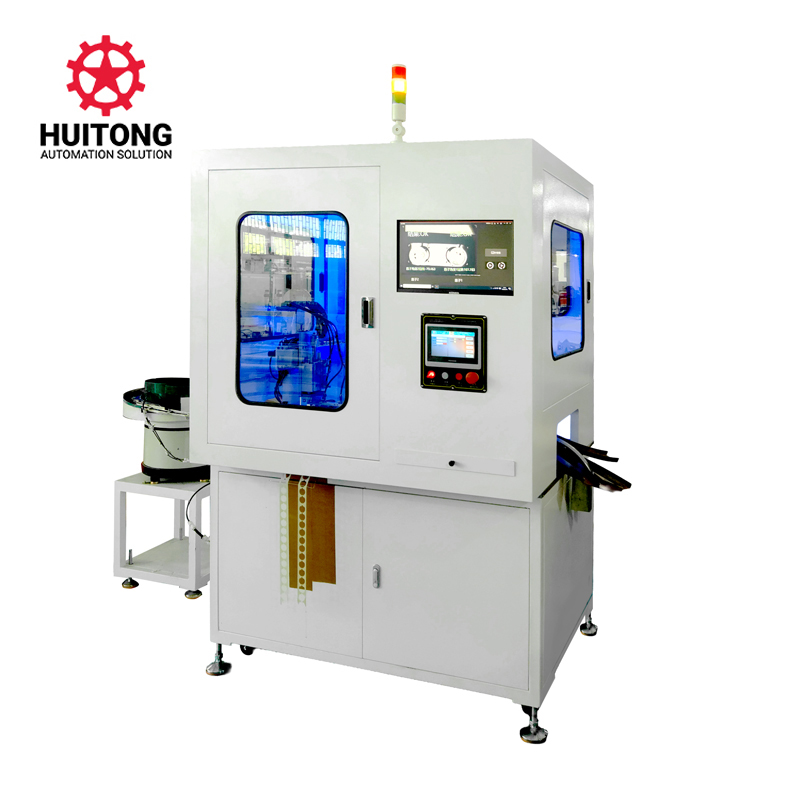

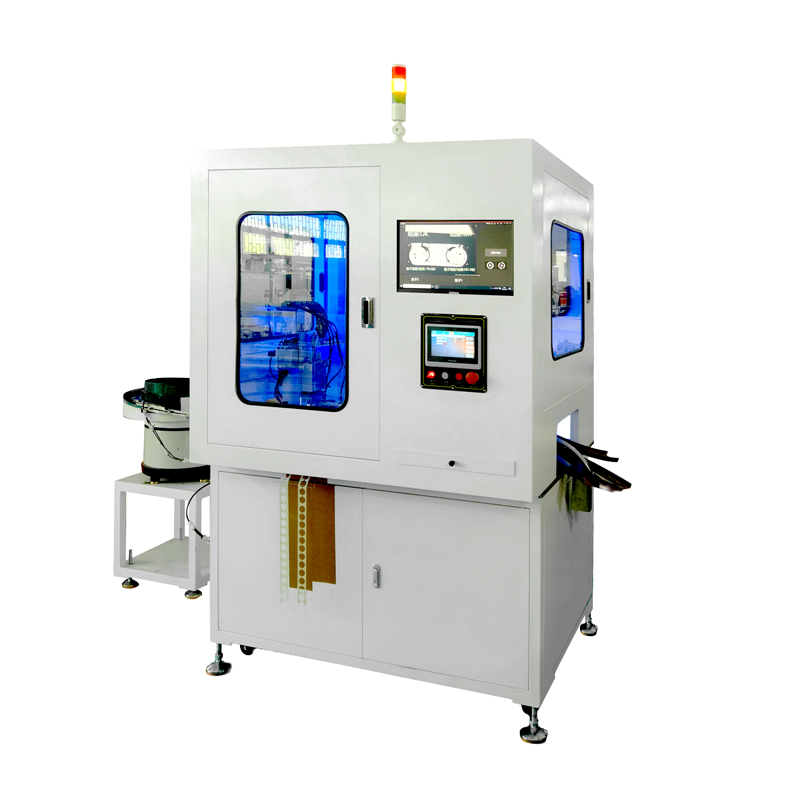

Fully automatic breather valve assembly machine

breathing valve assembly machine

The bottom and top covers are fed by a vibratory feeder, and the product orientation is detected by a CCD vision system. The valve plates are fed by roll material, automatically punched and sliced. The sliced valve plates are installed on the bottom cover using a vacuum suction cup, and the top and bottom covers are assembled to complete the breathing valve assembly. The whole machine is controlled by PLC and can assemble 20-30 breathing valves per minute. The system can be adjusted according to different breathing valves, which greatly saves labor costs.

TEL MSG

Product Introduction

The bottom and top covers are fed by a vibratory feeder, and the product orientation is detected by a CCD vision system. The valve plates are fed by roll material, automatically punched and sliced. The sliced valve plates are installed on the bottom cover using a vacuum suction cup, and the top and bottom covers are assembled to complete the breathing valve assembly. The whole machine is controlled by PLC and can assemble 20-30 breathing valves per minute. The system can be adjusted according to different breathing valves, which greatly saves labor costs.

Product Parameters

ParameterValue
Speed20-30pcs/min
Output Power4Kw
Power SupplyAC220V 50/60Hz
Air Pressure0.6-0.8 mpa
Weight800KG
Dimensions

2300*1800*2450mm

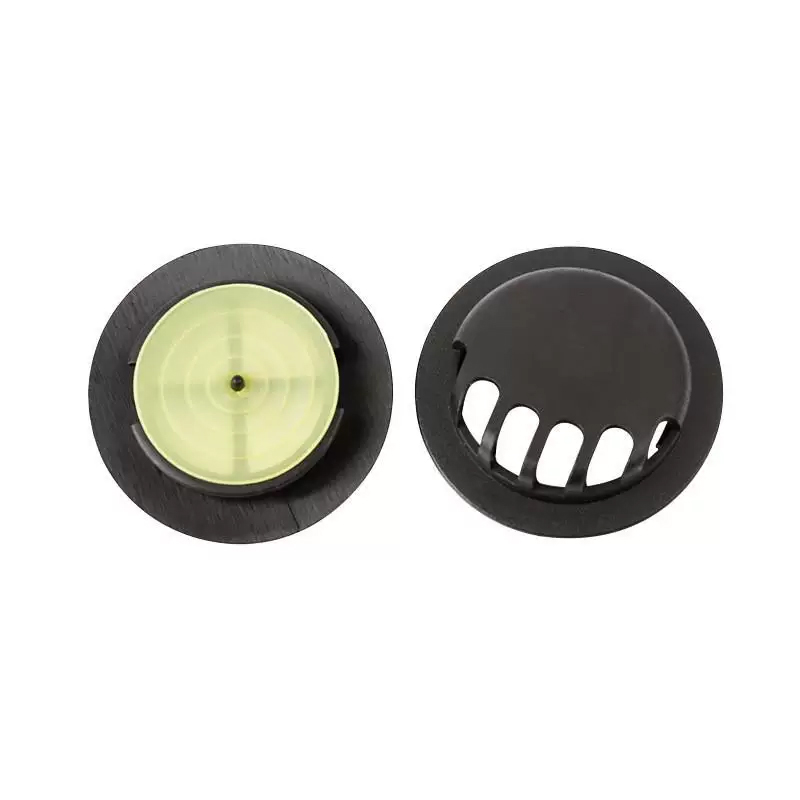

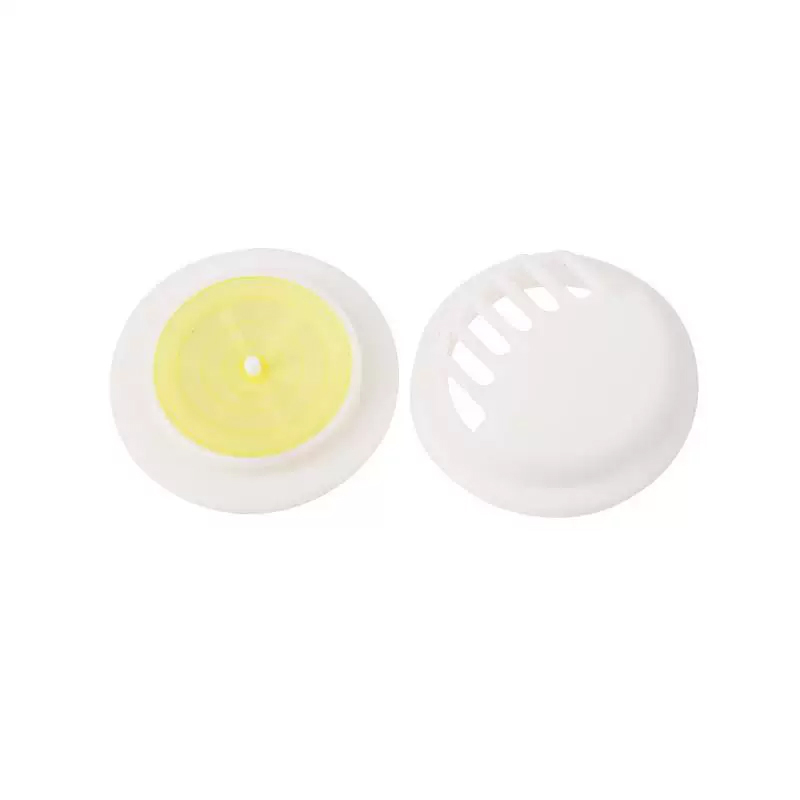

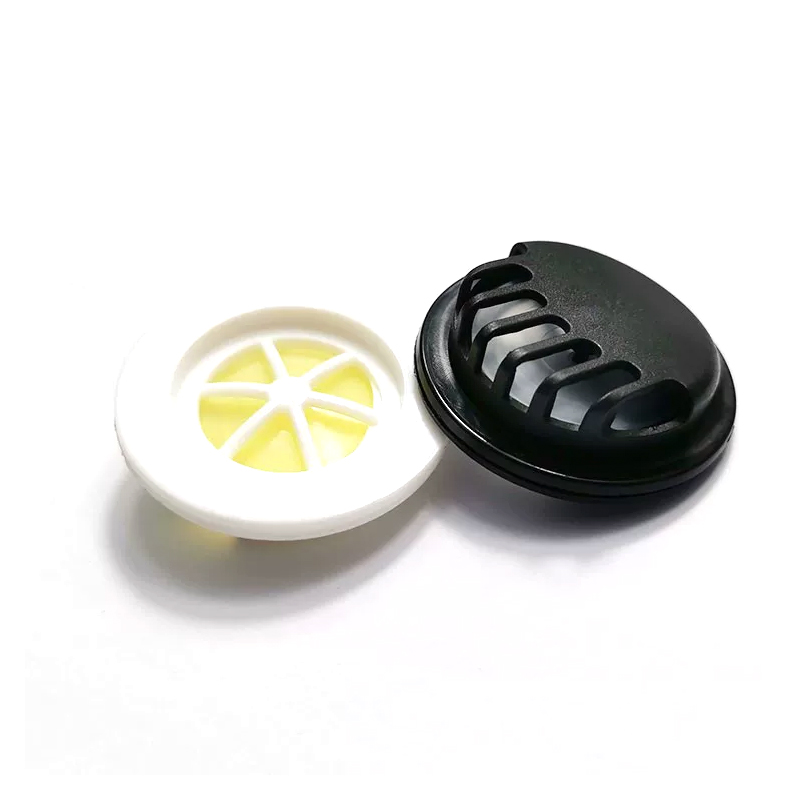

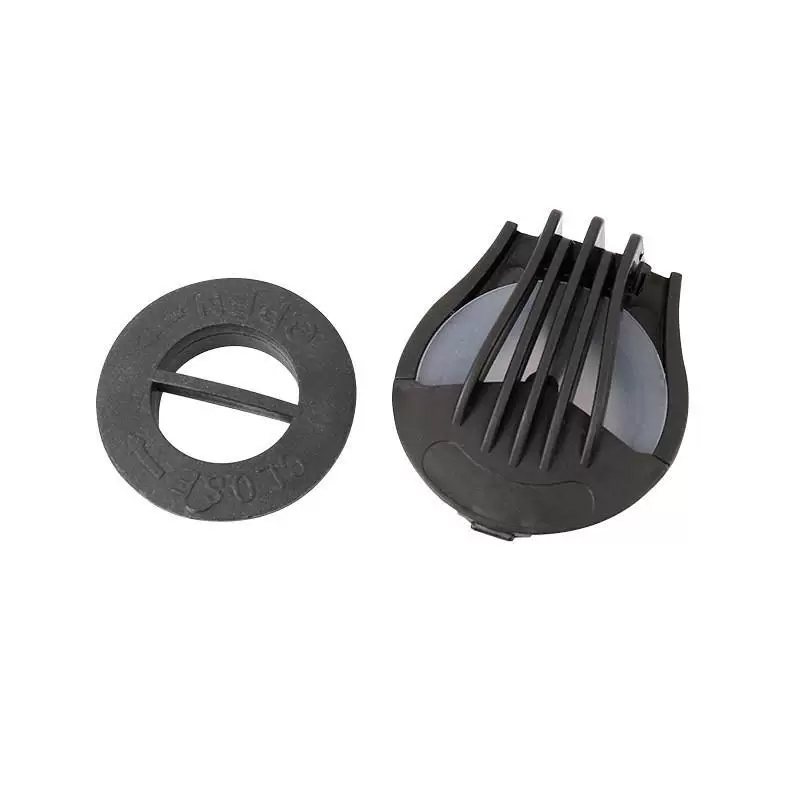

Sample photos

  • Fully automatic breather valve assembly machine
  • Fully automatic breather valve assembly machine
  • Fully automatic breather valve assembly machine
  • Fully automatic breather valve assembly machine

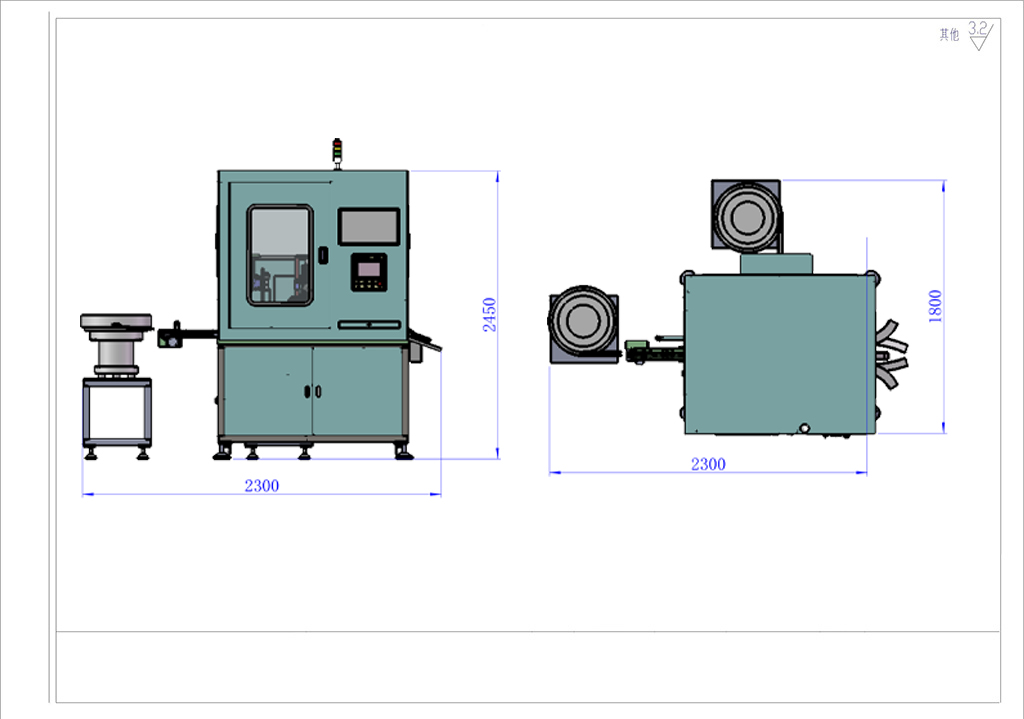

Product Drawings

Fully automatic breather valve assembly machine
