Product Introduction

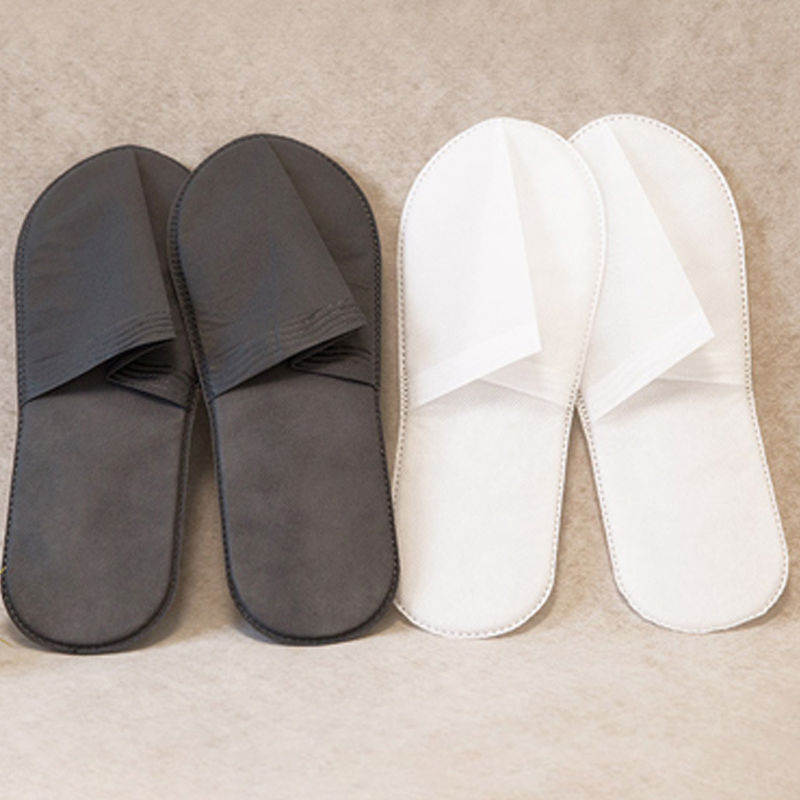

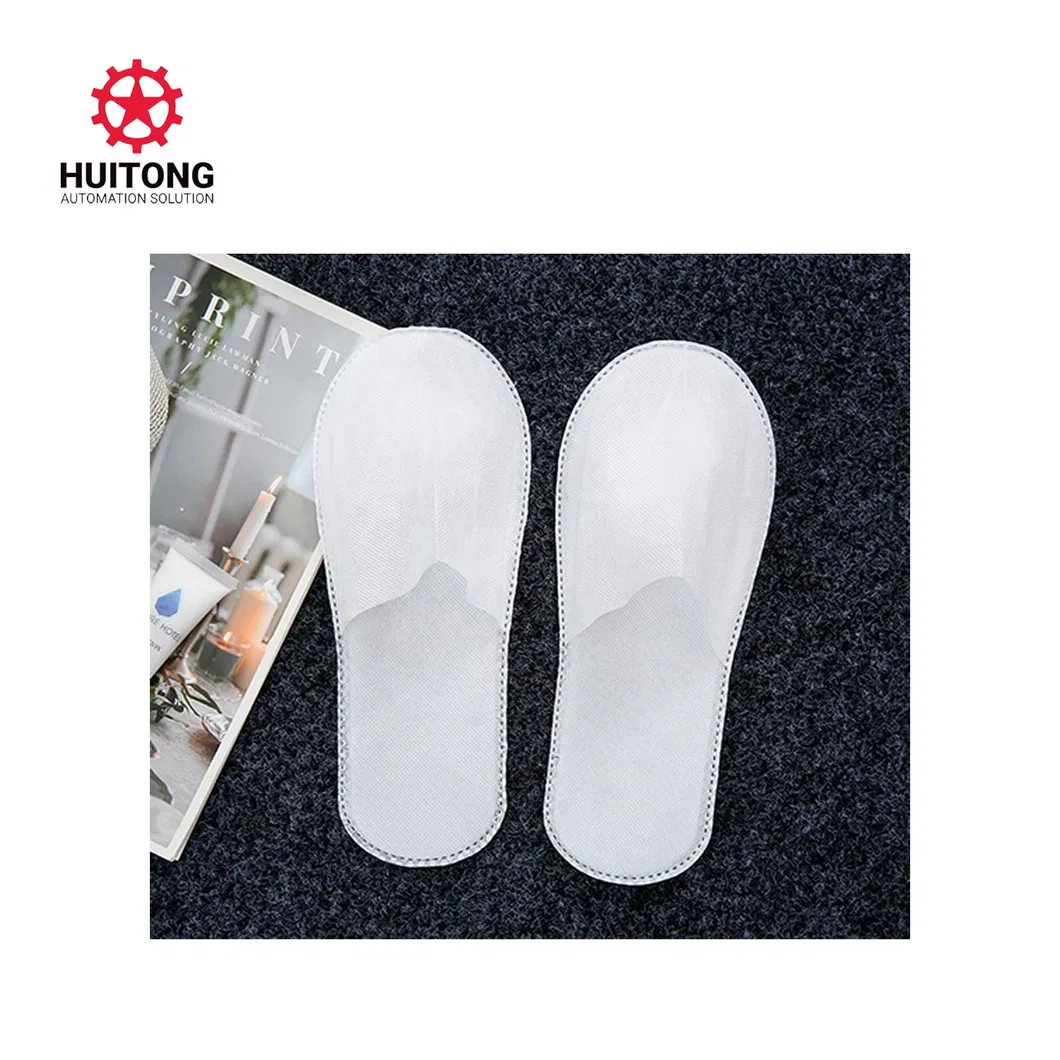

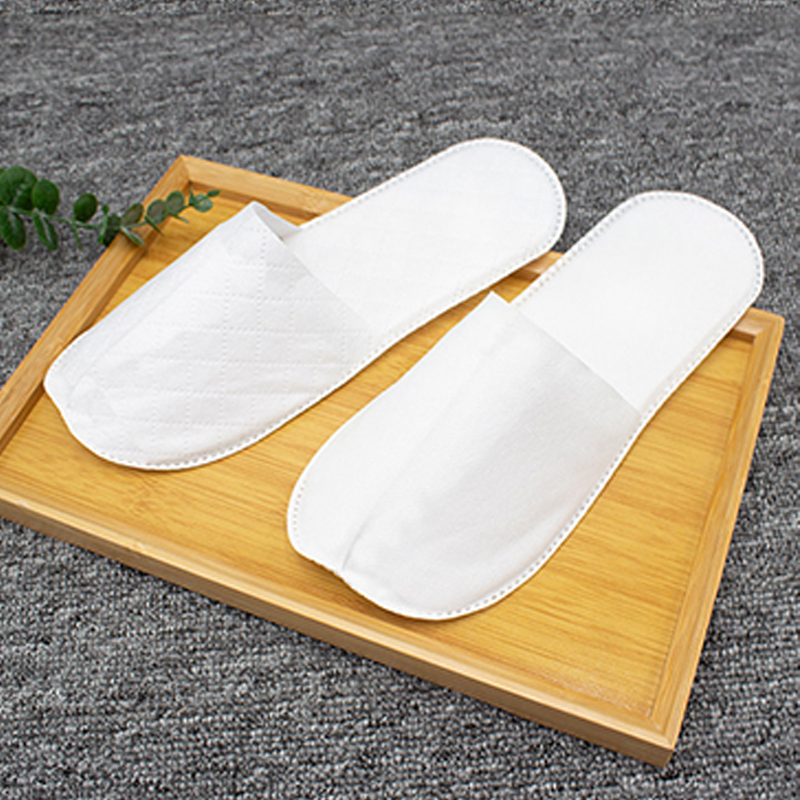

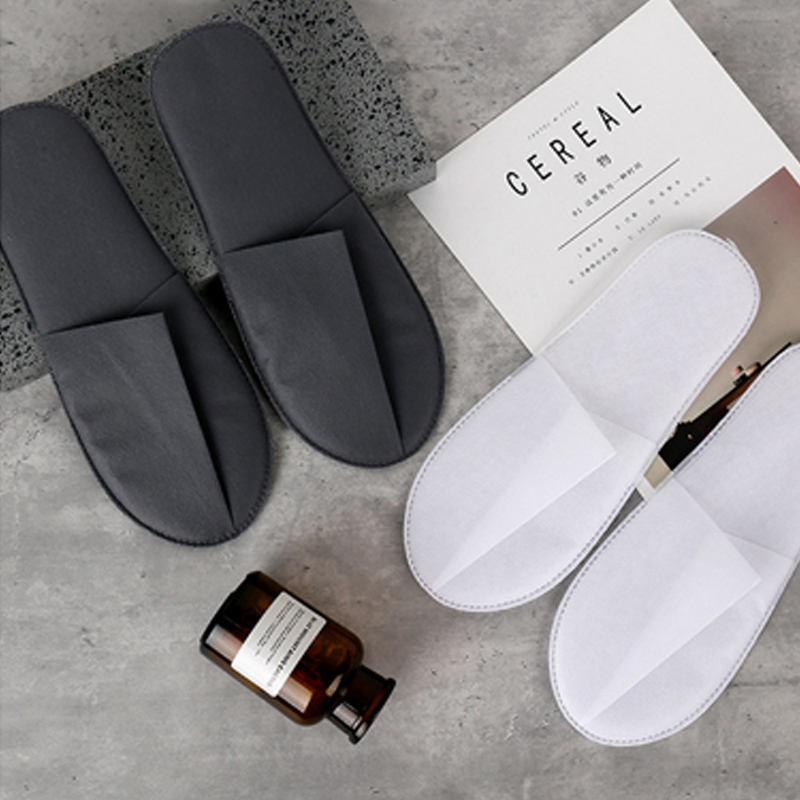

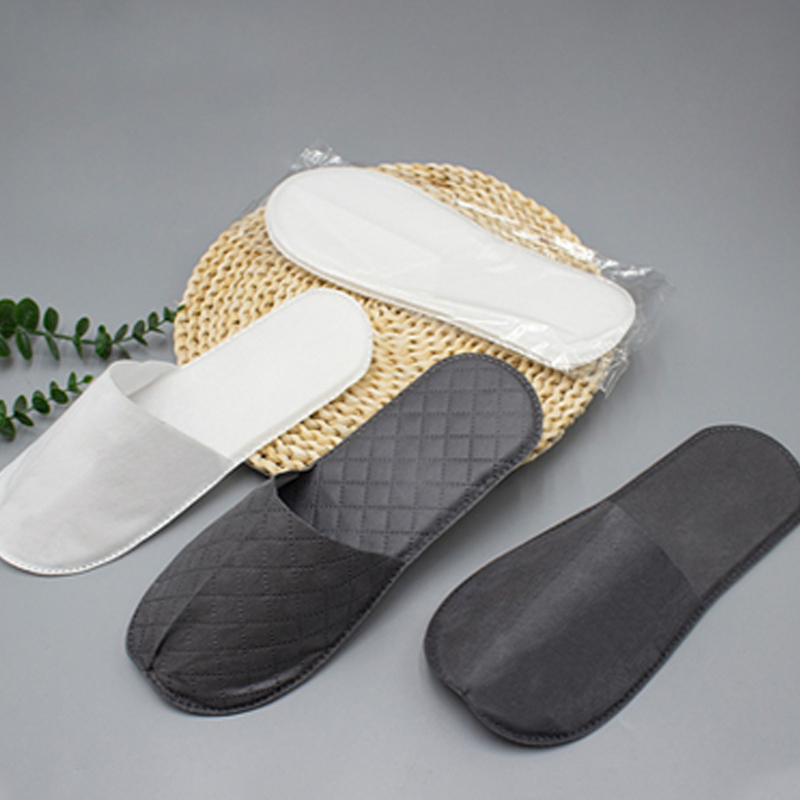

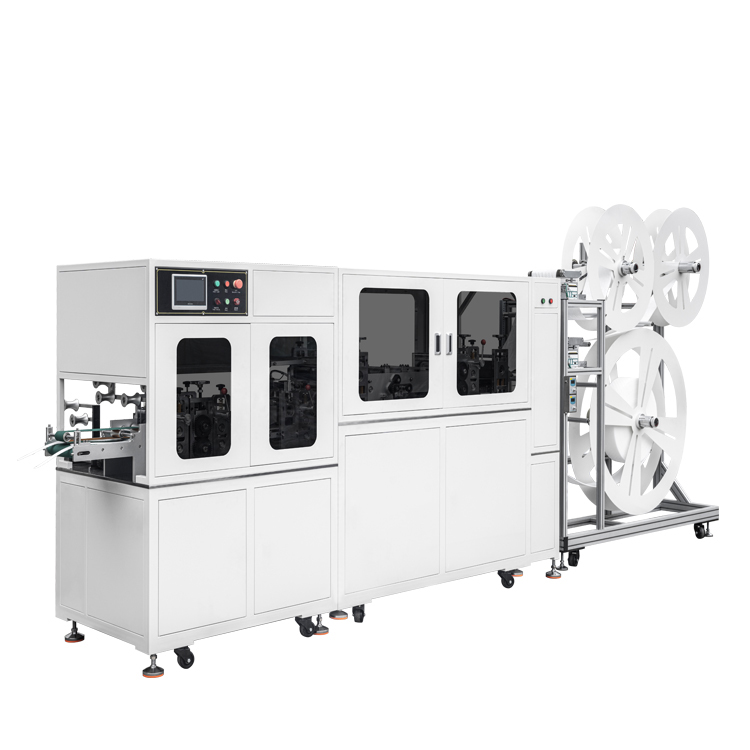

This machine is a fully automatic disposable slipper production line, widely used in hotels, home furnishings, medical facilities, beauty salons, and other industries. This is a newly improved sixth-generation model, offering high speed and stable quality. Designed for thickened EPE soles, the finished product features rounded edges. The multi-layered materials of the upper and sole can be securely sealed without stitching, resulting in durable, slip-resistant, non-toxic, and environmentally friendly products. Meeting the needs of mid-to-high-end hotel clients, it effectively enhances corporate image and customer experience, and will completely replace traditional knitting processes.
Configuration List (For reference only)
Main Configuration of the Equipment
| Machine Name/Model | Glue-Spraying Slipper Machine |
|---|
| Material Property | Two layers of fabric, one layer of EPE (Expandable Polyethylene) |
| Frame Property | Aluminum Profile |
| Roller Cutter Property | DC53 Heat Treatment |
| Mold Base Property | 45# Steel Surface Treatment |
| Transmission Property | Servo Motor |
| Display Screen | Display & Control Touch Screen |
| Control System | Servo control system, servo motor, ARISE deviation correction system, touch screen digital setting |
Equipment Configuration Table
Material Selection for Mechanical Parts
| Serial No. | Part | Property |
|---|
| 1 | Frame Part | Aluminum Profile |
| 2 | Transmission Parts | 45# Steel |
| 3. | Die Cutting Mold | Imported DC53 |
Electrical Parts
| Serial No. | Name | Model | Quantity (Based on Product) | Brand | Serial No. | Name | Model | Brand | Quantity |
|---|
| 1. | PLC | - | 1 | Inovance | 8. | Switching Power Supply | - | Taiwan Mean Well | X |
| 2. | Servo Motor | 0.75KW | 5 | Inovance | 9. | Control Button | - | Japan Idec | X |
| 3. | Servo Driver | 0.4KW | 8 | Inovance | 10 | Cutting Knife | - | Huidong | 1 |
| 4. | Touch Screen | - | 1 | Inovance | 11 | Glue-Spraying System | - | - | 1 |
| 5. | Relay | 24V | X | Omron | 12. | Cooling System | - | - | 1 |
| 6. | Ultrasonic System | 15K 2600W | 2 | Hongri | 14. | Waste Roll Collector | - | - | 2 |
| 7. | Ultrasonic System | 15K 4200W | 1 | Hongri | - | - |
|
|
|
Slipper Cost Analysis Sheet (For Reference Only)
| No. | Layer | Material Name | Width(mm) | weight g/m² | g/One Ton | Price/ton | Price/gram | Length mm | Width mm | One Slipper Need g/pc | Can make Quantity/ton (pairs) | CBM/Ton | Cost/pair of slipper | Cost in Total | Labor Cost | Total Cost of a pair |
|---|
| 1 | 1st Layer--Vamp | Needle Punched Cotton | 220 | 220 | 1000000 | 10000 | 0.01 | 190 | 220 | 9.20 | 54371 | 5.5 Ton/40'HQ;1 Ton≈12 CBM | 0.18 |
|
|
|
| 2 | 2nd Layer--Sole Top | Needle Punched Cotton | 130 | 130 | 1000000 | 10000 | 0.01 | 300 | 130 | 5.07 | 98619 | 8.5 Ton/40'HQ; 1 Ton ≈4.7 CBM | 0.10 |
|
|
|
| 3 | 3rd Layer--Sole Bottom (Thickness 7mm) | IXPE Foam | Thickness-7mm | 400 | 1000000 | 14000 | 0.014 | 300 | 130 | 15.60 | 32051 |
| 0.44 | 0.78 | 90% | 0.87 |
| 3 | 3rd Layer--Sole Bottom (Thickness 6mm) | IXPE Foam | Thickness-6mm | 340 | 1000000 | 13000 | 0.013 | 300 | 130 | 13.26 | 37707 |
| 0.34 | 0.69 | 90% | 0.77 |
| 3 | 3rd Layer--Sole Bottom (Thickness 5mm) | IXPE Foam | Thickness-5mm | 285 | 1000000 | 13000 | 0.013 | 300 | 130 | 11.12 | 44984 | 0.75*0.75*0.14m=0.079m3/roll 1000KG/1.2KG/roll=833roll/Ton 0.079*833=65m3/ton | 0.29 | 0.51 | 90% | 0.57 |
| 4 | 4th Layer -- Glue | Glue |
|
|
|
|
|
|
|
|
|
| 0.06 |
|
|
|
